12.1” LCD Monitor (LCM-121W-T-OF-10N-WT-HT-USB)
12.1” TFT LCD, 1280x800, 16:10, 1000 cd/m² brightness, 700:1 contrast, 16.7M colors
Resistive touch, USB interface, rear-side OSD buttons for full control
Open-frame galvanized steel chassis, VESA mountable, optional custom color
Inputs: 1 x VGA, 1 x DVI (HDMI/BNC optional)
DC12V standard, optional 9~32V DC or AC100~240V, display ~15W, built-in heater 50W
Wide operating temperature: -30°C to +60°C (with heater), humidity 5~90% non-condensing
TECHNICAL SPECIFICATIONS
Display
Size: 12.1” diagonal TFT LCD
Resolution: 1280 x 800
Aspect Ratio: 16:10
Brightness: 1000 cd/m²
Contrast Ratio: 700:1
Backlight: LED
Color Depth: 16.7 million colors
Touch & User Controls
Touch: Resistive touch screen, USB interface
OSD Buttons: Rear-side controls for Menu, Up, Down, Auto, On/Off, Brightness, Backlight, Contrast, Sharpness, OSD Position, Reset, Language, Video Source Select
Dimming: 0~100% (0~255 levels)

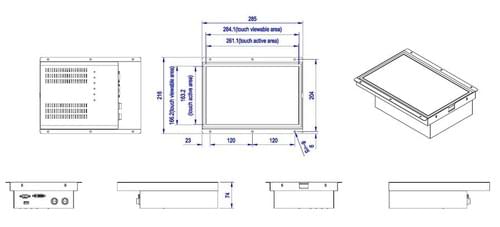

Mechanical
Chassis: Open-frame, standard galvanized steel; optional black/silver or custom color (RAL specified)
Mounting: VESA compatible
Front Bezel IP Rating: N/A
Signal Input
VGA: 1
DVI: 1
Optional: HDMI or BNC at request
Power
DC Input: 1 x DC circular connector, DC12V standard, optional 9~32V DC
AC Adapter: AC100~240V input, max 60W, CE/UL compliant
Power Consumption: ~15W for display only
Heater Module: Built-in, supports freezing conditions; DC12/24V or AC110/220V, 50W, independent from display power
Temperature & Environmental
Operating Temperature: -30°C to +60°C with heater
Storage Temperature: -30°C to +80°C with heater
Humidity: 5~90% RH @25°C, non-condensing
Other Features
Optional heater for frozen environments
Flexible open-frame integration for industrial and embedded applications
