Technical Specifications

Mechanical
Front Bezel: Military-grade 64430 / 6061 aluminum alloy
Chassis: Rugged galvanized steel with anti-corrosion treatment
Color: Semi-gloss black
Front Protection: IP66 (front side)

Mounting Options
VESA Mount: Yes, VESA 100
Panel Mount: Yes
Front Mount: Yes

Touch Screen
Touch Technology: Projected Capacitive Touch
Touch Points: Multi-touch support, up to 10 points
Touch Interface: USB
Touch Device: Finger touch
Scratch Resistant: Yes

LCD Display
Display Size: 15.95” diagonal TFT LCD
LCD Grade: Native military-grade panel
Resolution: 1024 × 768
Aspect Ratio: 16:10
Brightness: 500 cd/m²
Contrast Ratio: 700:1
Display Colors: 16.7M
Viewing Angle: 85° / 85° / 80° / 80°

Main Board
Grade: Military-grade
Fanless Design: Yes, 100% fanless design

Processor
CPU: Intel® 13th Generation quad-core 3.6GHz fast processor (economical lower-cost version)
Cache Memory: 6MB Smart Cache

Memory
RAM: 8GB DDR5 4800MHz SO-DIMM
Type: SO-DIMM

Storage
SSD: 128GB M.2 2280 NVMe Ultra Fast SSD
Expansion Options: 1TB / 2TB / 4TB available

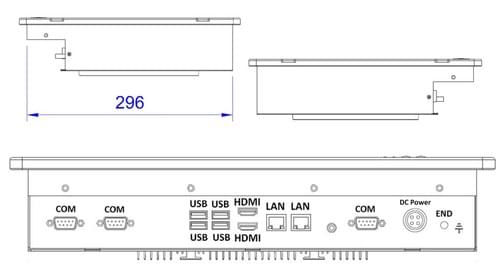

I/O Ports
USB: 4 × USB
Ethernet: 2 × 10/100/1000 Base-T Ethernet
HDMI: 2 × HDMI
COM: 3 × COM ports
DC: 1 × DC power connector

Power Supply
DC Input: 9~36V wide-range DC input
OSD Control Keys: On/Off switch, Reset buttons
Power Consumption: Less than 40W

Heater Module (Optional)
Nagasaki patented safety heater module

Dimensions
Exclude Front Bezel: 394 (W) × 318 (H) × 83 (D) mm
Include Front Bezel: 296 (W) × 210 (H) × 73 (D) mm

Environmental
Operating Temperature: 0°C ~ +50°C
Storage Temperature: -30°C ~ +80°C
Humidity: 5% ~ 95% RH at 30°C, non-condensing
Vibration: MIL-STD-810G compliant
Shock: MIL-STD-810G compliant

EMI / EMC
CE: Approved
FCC: Approved
RoHS: Compliant
MIL-STD-461F: Optional
