TECHNICAL SPECIFICATIONS

Display

LCD Size: 15” TFT LCD diagonal
Resolution: 1024 × 768
Brightness: 350 cd/m² (optional 1000 cd/m² for outdoor applications)
Contrast Ratio: 700:1
Viewing Angle: 85 / 85 / 80 / 80 (wide viewing angle)

Touch Screen

Touch Type: 5-Wire Resistive Touch
Touch Size: 15” diagonal
Touch Resolution: 4096 × 4096

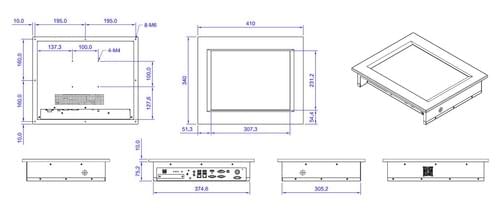

Mechanical Design

Front Bezel: Thick rugged aluminum front bezel
Chassis Material: Heavy-duty steel construction
Color: Black
Cooling: Equipped with cooling fans
Ingress Protection: IP65 front water-resistant, optional fully IP65 waterproof design
Mounting Options: Supports panel mount, console mount, and VESA-100 wall mount
Optional: Quick panel-mount kit available upon request

Performance

Processor: Intel® 12th Generation 4-Core 3.4GHz CPU
Mainboard Grade: Military-grade motherboard
Memory: 8GB DDR5 4800MHz RAM
Storage: 512GB M.2 2280 ultra-fast SSD (optional 120GB / 240GB SSD)
Graphics: Intel® 10th Generation HD Graphics

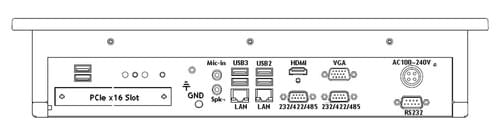

I/O Interfaces

LAN: 2 × Gigabit Ethernet ports (10 / 100 / 1000 Mbps)
USB: 6 × USB ports
Video Output: 1 × VGA, 1 × HDMI
COM: 2 × RS232/422/485 with RI/5V/12V, 1 × optional RS232
Audio: 1 × Line-out, 1 × Mic-in
DC Jack: 1 × DC power input
PCIe Expansion Slot: 1 × PCIe x1 (optional)

Power Supply

DC Input: Standard DC 12~19V input
Optional: Integrated military-grade DC 9~32V power board (with full isolation and reverse polarity protection)
Optional AC Input: Built-in or external AC power adapter (90~264V, 50/60Hz)

Heater Module

Optional patented heater and sensor module supports boot-up at -40°C for extreme cold environments

Power Consumption

Approx. 50W (excluding heater module)

Environmental

Operating Temperature: 0°C ~ +50°C
Optional: -40°C boot-up with heater module
Storage Temperature: -20°C ~ +60°C
Humidity: 0% ~ 95% RH, non-condensing
Shock: Designed to meet MIL-STD-810F
Vibration: Designed to meet MIL-STD-810F
