TECHNICAL SPECIFICATIONS

LCD Display

• Display Size: 19” TFT LCD diagonal

• Resolution: 1280 × 1024

• Brightness: 350 cd/m²

• Contrast Ratio: 1000:1

• Display Colors: 16.7M

• Aspect Ratio: 4:3

• LED Backlight: LED backlighting

• Viewing Angle: 170° (H) / 160° (V)

• Color Depth: 16.7M

Mechanical Design

• EIA Standard: EIA-301E, 1U rackmount

• Material: Heavy-duty AISI-304 stainless steel with anti-corrosion treatment

• Handle Grip: Yes

• Color: Semi-gloss black

• Weight: Approx. 13 kg (25 lbs)

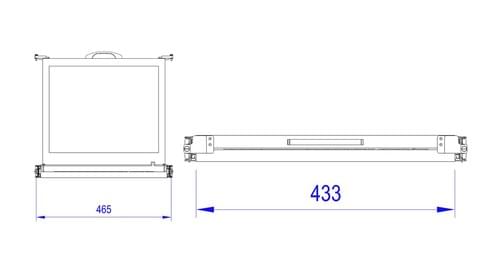

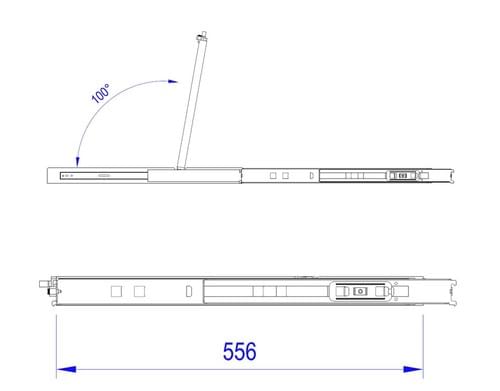

• Dimensions: Refer to drawing

Protective Glass

• Built-in ruggedized glass to protect LCD panel

• Touch Function: Optional

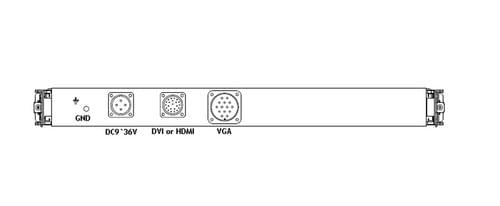

I/O Interfaces

• VGA: 1 × VGA with MIL-D-38999 military connector

• HDMI / DVI: 1 × HDMI or 1 × DVI with MIL-D-38999 military connector

• DC Power Input: 1 × DC 9~36V with MIL-D-38999 military connector

Keyboard & Touch Pad

• Keyboard Type: Military-grade IP68 waterproof keyboard

• Number of Keys: 104 with 24 function keys

• Key Material: Silicone rubber

• Backlight: LED backlight

• Touch Pad: Built-in touch pad

• Interface: USB

• Transfer Speed: 480 Mbps

• Voltage: DC 5V

• OS Support: Windows 10 / Linux

Power Supply

• AC Input: AC 90~264V, 50/60 Hz (D38999/20TC4PN, without mating side, available at extra cost)

• DC Input: 9~36V wide-range power input

• Power Consumption: < 25W

Environmental

• Operating Temperature: 0°C ~ +50°C

• Storage Temperature: -20°C ~ +60°C

• Humidity: 5% ~ 95% RH @ 30°C, non-condensing

• Salt Fog: Optional, designed to meet MIL-STD-810G

• Vibration: Optional, designed to meet MIL-STD-167-1

• Shock: Optional, designed to meet MIL-STD-901D
