Technical Specifications

Mechanical

• Front Bezel: Military-grade 64430 Aluminum Alloy with anti-corrosion treatment

• Chassis: Rugged galvanized steel with anti-corrosion treatment

• Mounting Options:

  • Front mount supported

  • VESA 100 wall mount supported

LCD Module

• Display Size: 19”

• Resolution: 1280 x 1024

• Brightness: 380 cd/m²

• Contrast Ratio: 1000:1

• Colors: 16.7M

• Viewing Angle: 85° (L) / 85° (R) / 80° (U) / 80° (D)

Touch

• Touch Screen: Yes

• Touch Technology: 5-wire resistive touch

Processor

• CPU: Intel® 13th Generation Core™ i3-13100TE Ultra Fast Processor

• Core / Thread: 4 / 8

• Clock Speed: 2.4 ~ 4.1GHz

• Cache Memory: 12MB

System Memory

• RAM: 8GB DDR4 3200MHz SO-DIMM

Storage

• SSD: 250GB M.2 2280 NVMe Ultra Fast SSD

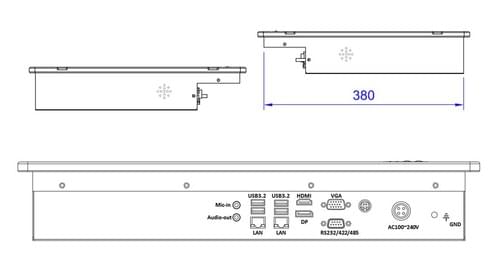

I/O Ports

• Serial: 1 x RS232/422/485

• USB: 4 x Ultra Fast USB 3.2

• LAN: 1 x Gb LAN, 1 x 2.5Gb Ultra Fast LAN

• Video Output: 1 x VGA, 1 x HDMI, 1 x DP

• Audio: 2 x (Mic-in, Audio-out)

• Speaker: 2 x Internal Speakers

• Power Input: 1 x AC with Military Circular Connector

Power Supply

• AC Input: 100~240V

• Optional: DC 9~36V Wide Input

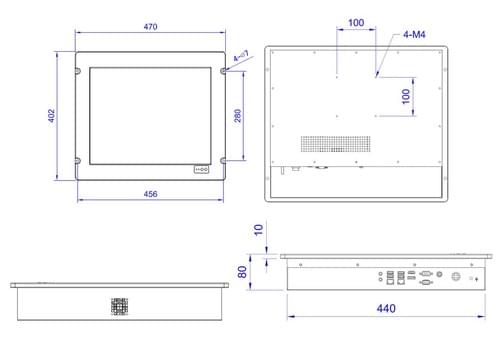

Dimensions

• Exclude Bezel: 440 (W) × 380 (H) × 70 (D) mm

• Include Bezel: 470 (W) × 402 (H) × 80 (D) mm

Operating System

• Supported OS: Windows 10 / 11 Pro

Environmental

• Operating Temperature: 0°C ~ +50°C

• Storage Temperature: -30°C ~ +85°C

Other

• Any required test certifications will incur additional cost.
