Technical Specifications

Mechanical
Front Bezel: Rugged military-grade aluminum alloy 64430
Chassis: Rugged galvanized steel with anti-corrosion coating, semi-gloss black
Mounting: Front mount and VESA-100 mount supported

LCD Module
Display Size: 20.1” Active Matrix TFT
Resolution: 1600 × 1200
Aspect Ratio: 4:3
Brightness: 1000 cd/m² (High Brightness)
Contrast Ratio: 1000:1
Viewing Angle: 85° / 85° / 85° / 85° (wide viewing angles)
Response Time: 20 ms
Backlight: LED backlight
Display Colors: 8-bit, 16.7M colors
Operating Temperature: 0°C ~ +50°C
Storage Temperature: -20°C ~ +70°C

EMI Protection
Built-in EMI mesh for electromagnetic shielding

Control & Dimming
OSD Buttons: Water-sealed OSD membrane
Dimming Range: Wide dimming range

Video Inputs
1 × VGA
Optional: 5 × BNC (R, G, B, H, V signal inputs)
1 × DVI
1 × HDMI

Power Input
Standard: 1 × AC with industrial circular connector (AC 90~264V wide input)
Optional: 1 × DC with industrial circular connector (DC 9~36V wide input)

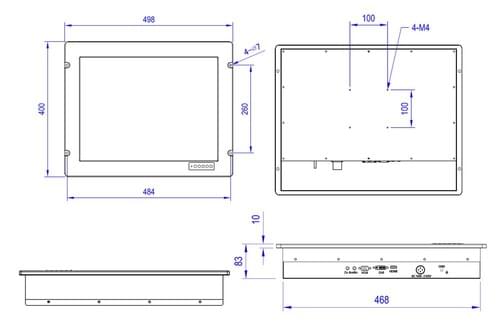

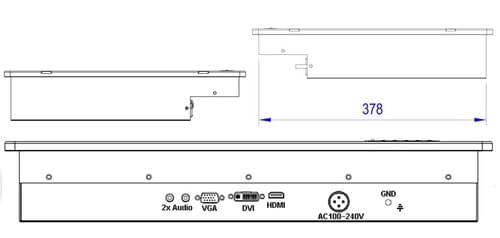

Dimensions
Exclude Bezel: 498 (W) × 400 (H) × 83 (D) mm
Include Bezel: 468 (W) × 378 (H) × 73 (D) mm

Environmental
Vibration: Optional, MIL-STD-810G compliant
Shock: Optional, MIL-STD-810G compliant
Operating Temperature: 0°C ~ +55°C
Storage Temperature: -20°C ~ +70°C
Humidity: 5%~95% at 40°C R.H., non-condensing
Salt Fog: MIL-STD-810G compliant

EMI / EMC
CE, FCC compliant
Optional: MIL-STD-461 compliant
