TECHNICAL SPECIFICATIONS

Mechanical

• Front Bezel: HE30 Aluminum alloy front bezel with black anodized treatment

• Chassis: HE30 Aluminum alloy with heatsink

• Handle: 2 x handles for easy handling

Mounting

• Type: Front mount

LCD Module

• LCD Size: 21.5”

• LCD Grade: Military grade LCD

• Resolution: 1920 x 1080 Full HD

• Brightness: 400 cd/m²

• Contrast Ratio: 1000:1

• No. of Colors: 16.7M

• View Angle: 89º / 89º / 89º / 89º

Optical Bonding & Protection

• Protective Glass: Built-in strengthened protective glass

• Optical Bonding: Yes

• EMI Mesh: Built-in EMI mesh

Computer System

• Mainboard Grade: Military grade high-end mainboard

• Processor: Intel 11th Gen i7-1165G7, 2.8~4.7GHz fanless high-performance processor

• Cores / Threads: 4 Cores / 8 Threads

• Cache Memory: 12MB Smart Cache

• Power Consumption (CPU/GPU): 28W / 12W

Graphics

• Graphics Engine: Intel Iris Xe high-performance GPU

• DirectX: 12.1

• OpenGL: 4.6

• OpenCL: 3.0

System Memory

• RAM: 32GB DDR4 3200MHz SO-DIMM

• Expandable: Up to 64GB

Storage

• SSD: 2TB M.2 2280 PCIe Super Fast SSD

Audio

• Speakers: Built-in 2 x 5W speakers

I/O Ports

• LAN (J2, J3, J7): 3 x 10/100/1000 Base-T Ethernet (D-38999 Mil. connector)

• USB 3.2 (J5): 2 x USB 3.2 (D-38999 Mil. connector + cap)

• COM (J5): 2 x RS232 (D-38999 Mil. connector + cap)

• USB 2.0 (J4): 1 x USB 2.0 (D-38999 Mil. connector + cap)

• DVI-OUT (J6): 1 x DVI-Out (standard DVI connector)

• DP (J8): 1 x DP (D-38999 Mil. connector + cap)

• AC Power (J1): 1 x AC power (D-38999 Mil. connector + cap)

• Fuse: 1 x Fuse

• Earth: 1 x Earth for grounding

Power Supply

• Input: AC 90~264V

• Type: Military grade power supply

• Total Consumption: 35~45W

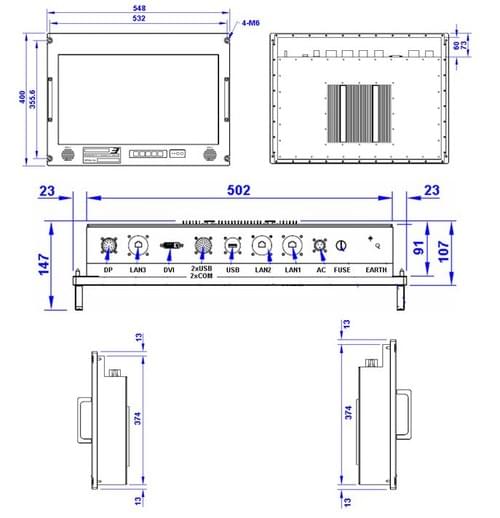

Dimensions

• Exclude Bezel: As shown in drawings

• With Front Bezel: As shown in drawings

Operating System

• OS: Windows 11

Environmental

• Operating Temperature: 0°C to +50°C

• Storage Temperature: -20°C to +60°C

• Humidity: 5~95% RH at 35°C (non-condensing)

• Vibration: MIL-STD-810G compliant

• Shock: MIL-STD-810G compliant

EMC / EMI

• CE: CE compliant

• MIL-STD-461E: Compliant

Note: MIL test cost is required.
