Technical Specifications

LCD Display

• Panel Size: 21.5” TFT LCD diagonal

• Resolution: 1280 x 800

• Backlight: LED

• Brightness: 300 cd/m² (without touch screen)

• Contrast Ratio: 3000:1

• Viewing Angle: 89° / 89° / 89° / 89° (wide angles)

• Colors: 16.2M

Touch Screen (Optional)

• Type: Resistive touch

• Interface: USB

Mechanical & Chassis

• Material: Stainless steel construction

• Front Bezel: 23” rack-mountable aluminum with M6 captive screws

• Handles: Yes, integrated for easy installation

• IP Rating: IP65 front protection

OSD Controls

• Buttons: Power On/Off, Menu, Up, Down, Auto

• Adjustments: Brightness, Backlight, Contrast, Sharpness, OSD Position, Reset, Language, Video Source Select

Mounting Options

• Front mount compatible

• VESA mount compatible

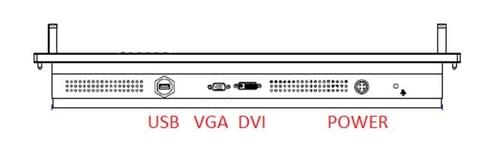

I/O Ports

• VGA: 1 x standard VGA port

• DVI: 1 x standard DVI port

• USB: 1 x USB for touch interface

• Optional video inputs: HDMI, BNC, HD-SDI, RS232 (available upon request)

Power Supply

• DC Input: 9~32V with reverse polarity, lightning, and over-voltage protection

• Optional AC input available

• Power Consumption: ~20 W

Heater Module (Optional)

• Available for extended operating temperature range or cold environments

Environmental Specifications

• Operating Temperature: 0 ~ 50°C

• Storage Temperature: -20 ~ 60°C

Dimensions

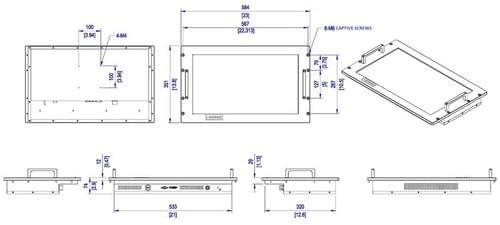

• Please refer to drawing (custom sizes available upon request)

Additional Features

• Rugged design suitable for industrial and military applications

• Front IP65 protection ensures resistance against dust and splashes

• Optional heater module supports cold-start in low-temperature environments
