24” Panel PC (PPC-32G12PT-i7-A4K-AC)
24” widescreen TFT LCD, 1920 × 1200 high resolution
Processor: Intel® 13th Generation Quad-Core 3.6GHz fast CPU
Memory: 16GB DDR5 4800MHz RAM
Storage: 256GB M.2 Ultra Fast SSD
I/O Interfaces
LAN: 2 × 2.5G Ethernet ports
HDMI: 2 × HDMI
Serial Ports: 4 × COM (optional upgrade to 8 × COM)
USB: 5 × USB ports
Power System
Power Input: AC & DC dual redundant power systems for high reliability
Design & Construction
Marine-grade rugged design for harsh environments
High-strength aluminum alloy housing with anti-corrosion treatment
Touch Screen: Projected capacitive multi-touch panel
Durable, water- and dust-resistant structure suitable for maritime or outdoor use
TECHNICAL SPECIFICATIONS
LCD Size: 32” Industrial-grade TFT LCD
Resolution: 1920 × 1080 Full HD
Brightness: 500 cd/m²
Contrast Ratio: 4000:1
Color Depth: 16.7M colors
Viewing Angle: 89° / 89° / 89° / 89° ultra wide
Touch Type: Multi-point Projected Capacitive Touch
Touch Interface: USB
Surface: Scratch resistant
Performance
Processor: Intel® 12th Generation i7-12700T, 12-Core, 3.4~4.6GHz high-speed CPU
Chipset: Intel® R680E
Cache Memory: 25MB Smart Cache
Graphics (GPU-1): Intel® UHD 770 Graphics
Graphics (GPU-2): NVIDIA RTX A4000, 16GB GDDR6 dedicated VRAM
DirectX / OpenGL / OpenCL: 12.0 / 4.6 / 3.0
Total Power Consumption: Approx. 230W
Memory & Storage
RAM: 16GB DDR4 3200MHz SO-DIMM (expandable)
Storage: 2TB M.2 2280 NVMe Ultra Fast SSD
Expansion Options: 512GB / 1TB / 4TB / 8TB

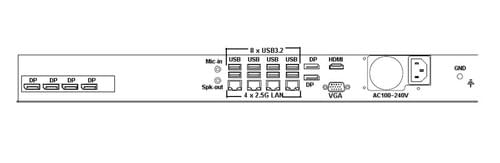

I/O Interfaces
LAN: 4 × 2.5Gb ultra fast Ethernet ports (10/100/1000/2500 Mbps)
USB: 8 × USB 3.2 ultra fast ports
VGA: 1 × VGA
HDMI: 1 × HDMI
DisplayPort: 2 × DP ports
Serial: 1 × RS232/422/485 (default RS232)
TPM 2.0: Hardware security module
Power
Input: AC100~240V, 50/60Hz, auto-sensing
Power Consumption: < 250W
Mechanical Design
Chassis: Rugged galvanized steel with anti-corrosion treatment
Color: Semi-gloss black
Cooling: Internal cooling fans

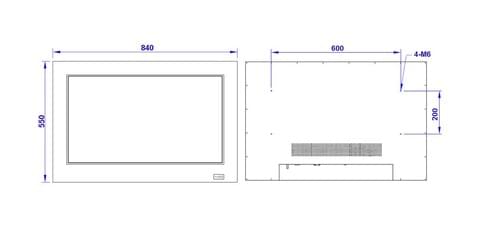

Mounting: VESA 600 × 200, optional panel mount
Dimensions: 840 (W) × 550 (H) × 100 (D) mm
Accessories
Wireless keyboard and mouse included
Operating System
OS Support: Windows 10 / 11 Pro
Optional: Microsoft Office package
Environmental & Compliance
Operating Temperature: 0°C ~ +50°C
Storage Temperature: -30°C ~ +80°C
Humidity: 5% ~ 95% RH @ 35°C, non-condensing
RoHS: Compliant
Certifications: CE / FCC approved
