TECHNICAL SPECIFICATIONS

Mechanical Design

Front Bezel: Military-grade aluminum alloy 6061-T6, chromate treated
Housing: Rugged galvanized steel with anti-corrosion coating
Color: Semi-gloss black
Ingress Protection: IP67 waterproof and dustproof (front side rated IP65)

Display

LCD Size: 5.6” native military-grade panel
Resolution: 640 × 480
Aspect Ratio: 4:3
Brightness: 800 cd/m² high brightness for indoor and outdoor use
Contrast Ratio: 600:1
Display Color: 16.2M colors
Viewing Angle: 80 / 80 / 70 / 70 degrees
Operating Temperature: 0°C to +50°C (without heater module)
Optional: -30°C to +80°C (with heater module)
Touch Screen: No touch version
EMI Protection: Built-in EMI shielded mesh

Mounting Options

Front Mount: Supported
VESA Mount: Supported (VESA-75 wall mount)

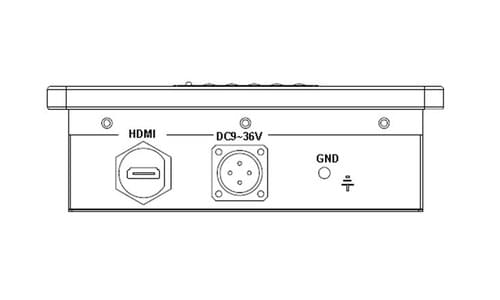

I/O Interfaces

HDMI: 1 × HDMI with IP67 military circular connector
DC Input: 1 × DC with IP67 military circular connector

Power

DC Input: 9~36V wide range DC input
Power Grade: Military-grade isolated power supply
MIL-STD-1275D: Compliant
Reverse Polarity Protection: Yes
Lightning Protection: Yes
Power Consumption: Approx. 10~12W

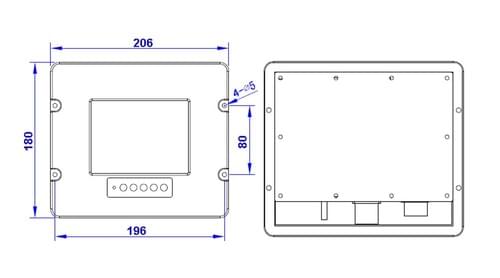

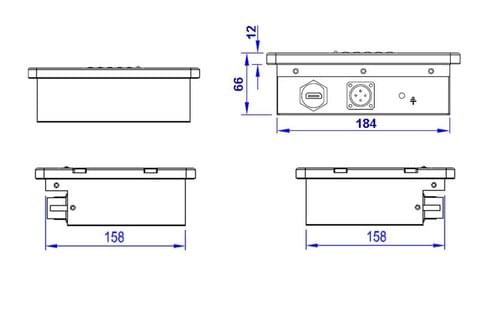

Dimensions

Without Bezel: 224 (W) × 186 (H) × 59 (D) mm
With Bezel: 224 (W) × 186 (H) × 69 (D) mm

Environmental & Reliability

Operating Temperature: 0°C ~ +50°C (optional -30°C ~ +80°C)
Storage Temperature: -30°C ~ +85°C
Humidity: 5% ~ 95% RH @ 35°C, non-condensing
Fungus Resistance: MIL-STD-810 compliant
Shock Resistance: MIL-STD-810 compliant
Vibration Resistance: MIL-STD-810 compliant

EMI / EMC Certification

CE: Approved
FCC: Approved
MIL-STD-461: Optional upon request
