Product Specifications

Mechanical

• Front Bezel: Military-grade 64430 aluminum alloy with anti-corrosion treatment

• Chassis: Rugged galvanized steel with anti-corrosion treatment

• Fanless: 100% fanless design

• IP Rating: Six-side sealing (IP-rated)

• Mounting: Front mount

Touch Screen

• Touch Type: 5-Wire Resistive

• Input Methods: Finger, gloved hand, or stylus pen

• Functionality: Full touch support

LCD Module

• Display Size: 7-inch

• Resolution: 800 x 480

• Brightness: 400 cd/m²

• Contrast Ratio: 1000:1

• Viewing Angle: ±80° horizontal / ±80° vertical

• LED Indicator: Yes

PC System

• Motherboard: Military-grade mainboard

• Processor: 13th Gen Intel N97, 3.6 GHz, 12W, 4 cores, 6 MB Smart Cache

• GPU: Intel 10th Gen UHD

• RAM: 8GB DDR5 4800MHz, expandable up to 16GB

• Storage: 512GB M.2 2280 NVMe SSD, expandable up to 1TB or 2TB

I/O Ports (All IP-68 Waterproof Connectors)

• LAN: 1 x 10/100/1000 Base-T Ethernet, military circular connector

• USB: 1 x USB, military circular connector

• Serial Ports: 4 x RS232, military circular connector

• Power Input: 1 x DC, military circular connector

Power

• Input Voltage: DC 12~36V

• Power Consumption: Approximately 20W

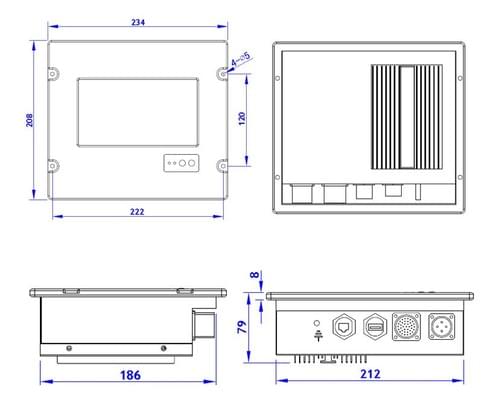

Dimensions

• Including Bezel: 234 x 208 x 71 mm (W x H x D)

• Excluding Bezel: 234 x 208 x 79 mm (W x H x D)

Operating System

• Windows 10 / 11 IoT

Environmental

• Operating Temperature: +5°C to +50°C

• Storage Temperature: -40°C to +90°C

• Altitude: Up to 10,000 meters

Certifications

• EMC / EMI: CE, FCC approved

• MIL-STD-461: Optional
