TECHNICAL SPECIFICATIONS

Chassis

• Material: Rugged steel construction

• Cooling: 100% fanless design with convection air-cooled heatsink

Motherboard

• Grade: Industrial grade motherboard

Processor

• CPU: Intel® 8th Generation i5-8265U processor, 1.6 ~ 3.9GHz

• Cache Memory: 6MB smart cache

• Power Consumption: 10 ~ 25 Watts

• Withstand Temperature: Up to 100°C

System Memory

• RAM: 8GB DDR4 SO-DIMM

• Expandable: Up to 32GB

Storage

• Drive: 120GB SSD

Graphics

• Graphics Chip: Intel® UHD Graphics for 8th Gen Intel® Processors

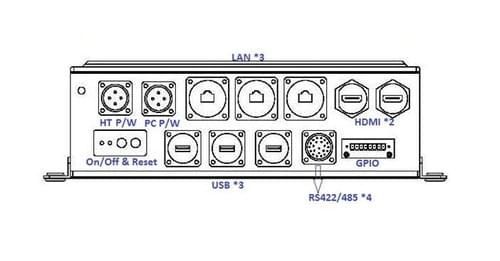

I/O Ports

• HDMI: 2 x HDMI with military circular connectors, dust caps, and 2-meter long mating cables

• USB: 3 x USB2.0 with military circular connectors, dust caps, and 2-meter long mating cables with female USB sockets

• LAN: 3 x Gigabit LAN with military circular connectors, dust caps, and 2-meter long mating cables with female RJ45 sockets

• DC Connector: 1 x DC 9~32V power input with military circular connector, dust cap, and 2-meter long mating cable with flying leads

• GPIO: 1 x DIO with Phoenix terminal block

Power

• Power Consumption (PC): Around 35 Watts (excluding heater)

• Heater Power: 50 Watts

• Optional AC Adapter: AC 90~264V, 60W external power adapter (optional at extra cost)

Mechanical

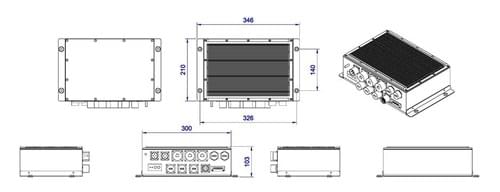

• Dimensions (W x D x H): 346 x 210 x 103 mm

Environmental

• Operating Temperature: 0 to 60°C

• Storage Temperature: -30 to 70°C

• Humidity: 5~95% RH at 35°C, non-condensing

• Shock: MIL-STD-810F compliant

• Vibration: MIL-STD-810F compliant

• EMI/EMC: CE compliant
