Technical Specifications

Mechanical
Width: Standard 19” rackmount
Height: 1U
Material: Rugged galvanized steel with anti-corrosion treatment
Color: Semi-gloss black
Cooling: Fanless, conduction cooling through large heatsink
Rain Protection: Built-in I/O rain cover for outdoor or field use

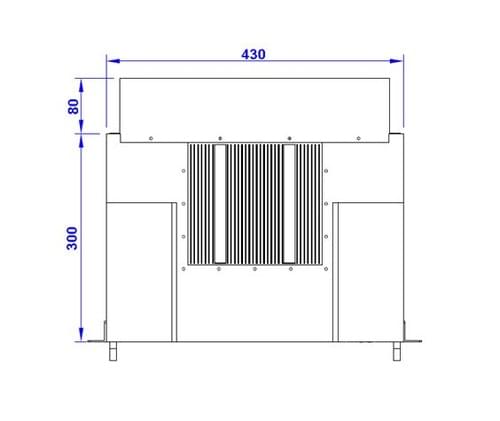

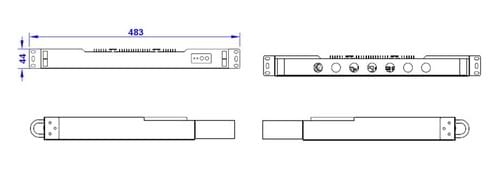

Dimensions: 482.6 (W) x 44.5 (H) x 380 (D) mm

Mainboard
Grade: Military-grade mainboard for high reliability
Chipset: Intel® 11th Generation platform

Processor
Model: Intel® Core™ i7-1165G7
Cores / Threads: 4 Cores / 8 Threads
Clock Speed: 1.2~2.8 GHz
Cache Memory: 12MB Smart Cache
Graphics: Intel® Iris Xe GPU
Power Consumption: Less than 20W

Memory
Installed Memory: 32GB DDR4 3200MHz SO-DIMM
Expansion: Up to 64GB (2 x SO-DIMM slots)

Storage
For OS: 256GB M.2 2280 NVMe Ultra Fast SSD
For Data: 1TB 2.5” SATA-III SSD
RAID Support: RAID 0, 1

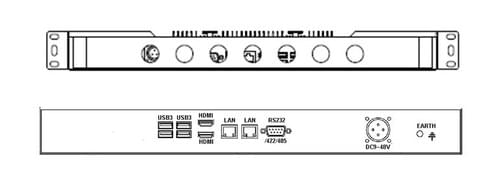

I/O Interfaces
USB: 4 x USB3.2 ultra-high-speed ports
LAN: 2 x 10/100/1000 Mbps Ethernet ports
HDMI: 2 x HDMI (supports up to 4096 x 2160 4K resolution)
Serial Port: 1 x Configurable RS232/422/485 (optional +3 additional ports)
Optional Connectors: IP68 military circular connectors available upon request

Power System
DC Input: DC9~48V ultra-wide range input
Connector: D38999/20WC4PN (Mating: D38999/26WC4SN)
AC Input (Optional): AC90~264V 50/60Hz adapter
Protection: Reverse polarity, over-voltage, and surge protected

Heater Module (Optional)
Type: Nagasaki-patented safety heater module
Auto Activation: On at 6~10°C
Auto Deactivation: Off at 16~20°C
Safety: Zero electric leakage, 100% safe

Operating System
Windows: Windows 10 / 11 Pro (64-bit), Windows Server 2016 / 2019
Linux: RHEL 8.2 or above, Ubuntu, others

Environmental
Operating Temperature: -20°C to +60°C
Storage Temperature: -30°C to +85°C
Humidity: 5~95% RH, non-condensing at 40°C
Protection: Rain-resistant, sand-resistant
Cooling: Fanless conduction cooling

Certifications
RoHS: Compliant
EMI/EMC: CE, FCC Approved
