TECHNICAL SPECIFICATIONS

Mechanical

Height: 2U Rugged Rack Mount
Material: Galvanized heavy-duty steel with anti-corrosion treatment
Color: Semi-gloss black
Cooling Method: CPU cooler, cooling fans blowing in from front and exhausting from rear

System

Main Board Grade: Military grade server board
Processor: Intel 13th Generation, 16-Core, 3.6GHz
Core / Thread: 16 Cores / 24 Threads
Cache Size: 30MB Smart Cache
Graphics: Intel UHD 770 high-end graphics controller
RAM: 64GB DDR5 4800MHz, expandable up to 192GB

Storage

SSD: 1 x 2.5” 512GB SSD
M.2 SSD: 1 x 256GB M.2 2280 NVMe Ultra Fast SSD

I/O Ports

LAN: 4 x Gb LAN (1 x 2.5Gb + 3 x Gb LAN)
USB 3.2: 4 x USB 3.2 ultra-fast ports
VGA: 1 x VGA, supports up to 1920 x 1200
HDMI: 2 x HDMI, supports up to 4096 x 2160 @ 60Hz
Display Port: 1 x DP, supports up to 4096 x 2160 @ 60Hz
Serial: 1 x Configurable RS232/422/485 port (preset as RS232)
Audio: 1 x Mic-in, 1 x Speaker-out, 1 x Line-in
Power Input: AC100~240V, 50/60Hz wide range, auto-sensing
Power Connector: US standard 3-pin plug (IEC-320 C13)

EMI Mesh / Filter

EMI Mesh: Built-in EMI shielding sheet
EMI Filter: Built-in EMI filter

Heater Module & Sensor

Heater Module: Built-in Nagasaki patented 100% safety heater module
Safety Heater Module: Withstands up to +450°C, no electric leakage
Sensor: Built-in thermal auto sensor
Auto Control: Automatic On/Off function

Expansion Slots

PCIe Slots: 2 x PCIe x16 (free), 1 x PCIe x4 (free)

Power Supply

Input: AC100~240V wide input
Total Power Consumption: Around 50W
Power Capacity: 600W industrial grade power supply

Dimensions & Weight

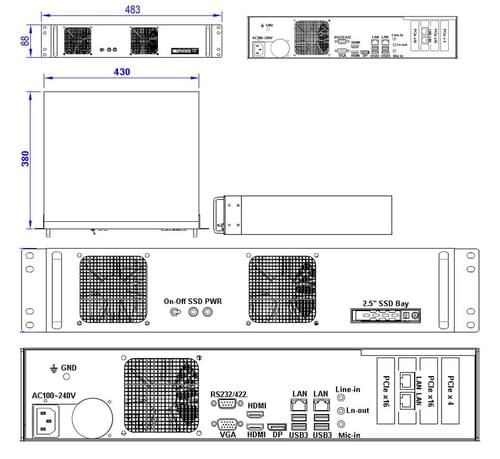

Dimensions (W x H x D): 483 x 88 x 380 mm
Weight: Approx. 10 kg

Operating System

Windows: Windows 11, 64-bit Professional
Linux: Supports RHEL, Linux, Ubuntu, etc.

Environmental

Temperature:
Operating: 0°C ~ +50°C
Non-operating: -35°C ~ +80°C

Humidity:
Operating: 5~95% RH at 30°C, non-condensing
Non-operating: 0~98% RH at 30°C, non-condensing

Altitude:
Operating: Up to 10,000 feet
Non-operating: Up to 40,000 feet (air transport)

Vibration (Non-operating):
0.06” double amplitude (5–15Hz)
0.04” double amplitude (15–25Hz)
0.02” double amplitude (25–35Hz)
Suitable for improved and unimproved roads

Shock (Non-operating):
15g peak half-sine for 11ms
Suitable for improved and unimproved roads

EMI / EMC

CE: Approved
FCC: Approved
