Technical Specifications

Form Factor
Standard 4U EIA rackmount chassis

Mainboard

• Grade: Industrial server-grade mainboard with RAID support

• Chipset: Intel® H110

Processor

• CPU: Intel® 7th Generation Core™ i7-7700T high-speed processor

• Cache: 8MB cache memory

• Cores: 4 cores

• Frequency: 2.8 ~ 3.9 GHz

• Power Consumption: 35W (including integrated Intel® HD630 graphics)

Memory

• Installed: 4GB DDR4 2400MHz

• Expandable: Up to 32GB DDR4 2400MHz

Storage

• Primary Drive: 1 × 250GB 2.5" slim SSD (vehicle-grade)

• Drive Bays: 4 × hot-swappable 2.5" SATA-III HDD/SSD bays with key locks

Graphics

• Engine: Intel® HD 630 integrated graphics

• Memory: 4GB (expandable up to 64GB shared)

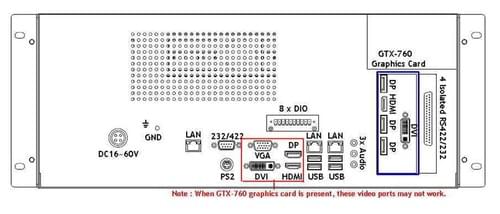

Rear I/O Interfaces

• VGA: 1 × VGA (max. 1920 × 1200 resolution)

• DisplayPort: 3 × DP (each supports up to 4096 × 2160 @ 60Hz)

• LAN: 2~3 × Gigabit Ethernet (10/100/1000 Mbps), supports LAN teaming & redundancy

• USB: 4 × USB 3.0, 4 × USB 2.0

• Serial Ports: 2 × RS232/422/485

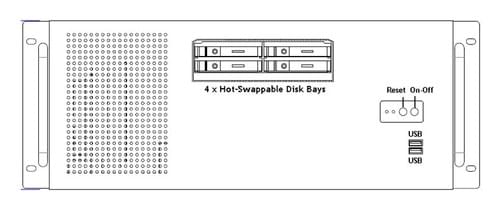

Front I/O Interfaces

• USB: 4 × USB 2.0

• Storage: 4 × Hot-swappable SATA-III HDD/SSD bays

• Controls: Power switch, reset button

• Indicators: Power LED, HDD LED

RAID Function
Supports RAID 0, 1, 5, and 10

Enclosure

• Construction: Rugged steel chassis with anti-rust treatment

• Color: Black (custom colors available)

Power Supply

• Input: AC 90 ~ 264V, 50/60Hz

• Capacity: 300W

• Protection: Overload protection built-in

• Total Power Consumption: Around 50W (excluding external GPU)

Cooling System
Front-to-rear airflow with high-efficiency cooling fans

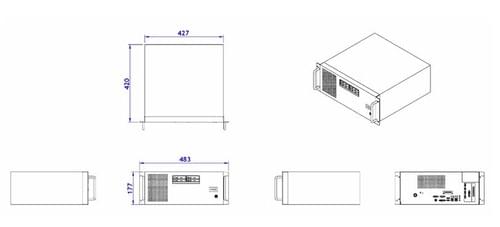

Dimensions
483 (W) × 177 (H) × 420–450 (D) mm

Operating System Compatibility
Windows 10 / Windows 10 IoT / Windows Server / Linux / Ubuntu

Environmental

• Operating Temperature: 0 ~ +60°C
